เครื่องผลิตช็อกโกแลตแบบสอดไส้ 9 หัวฉีด

คุณลักษณะเกี่ยวกับเครื่อง

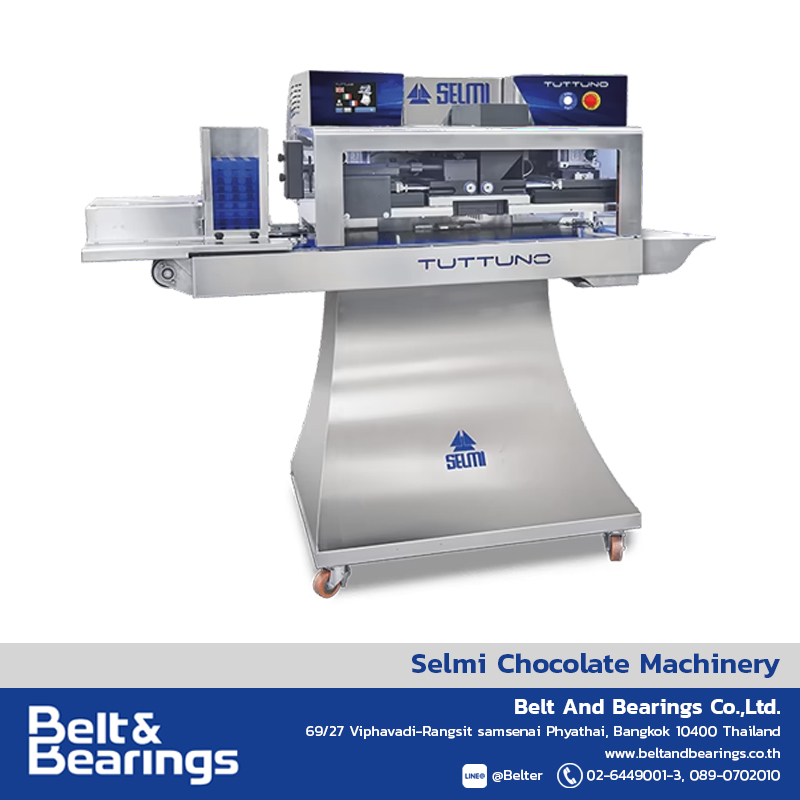

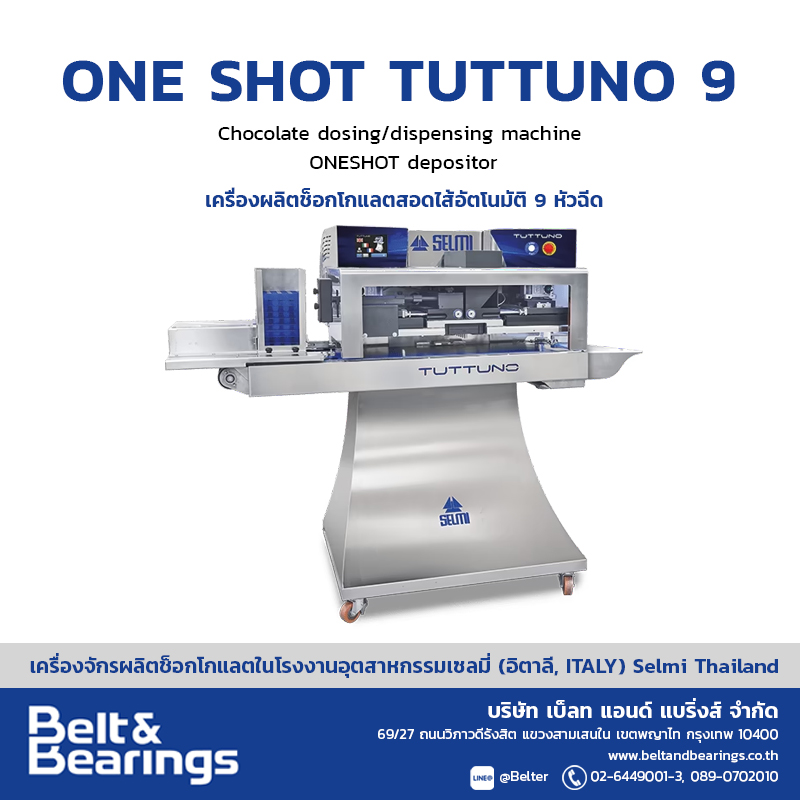

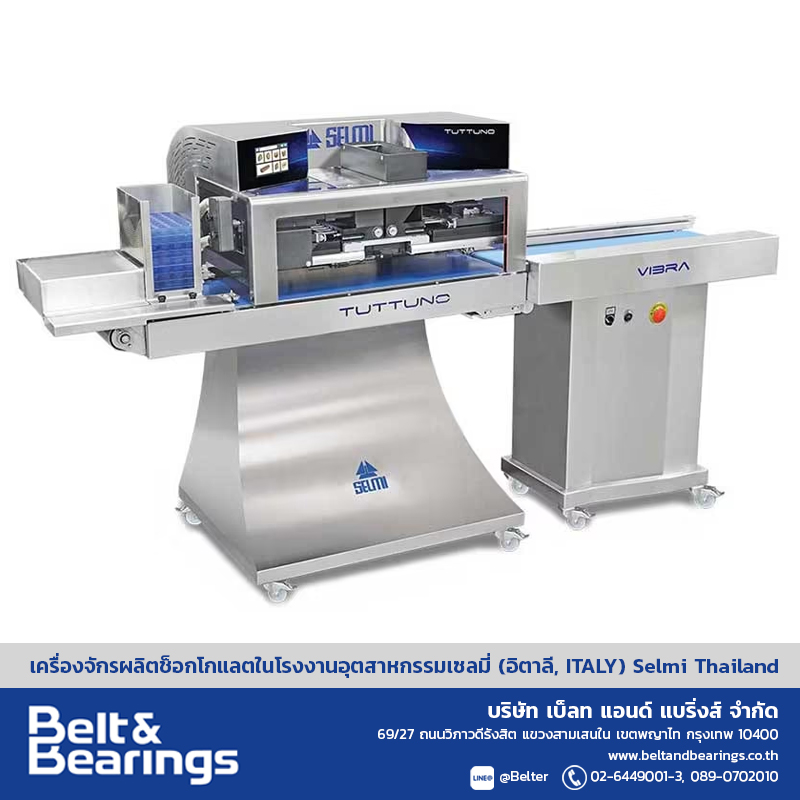

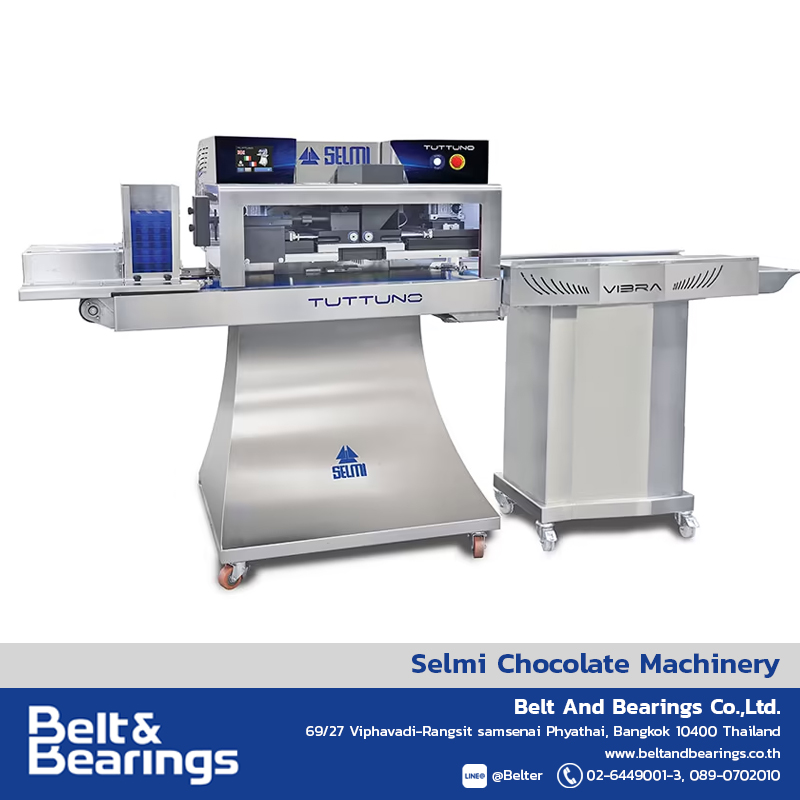

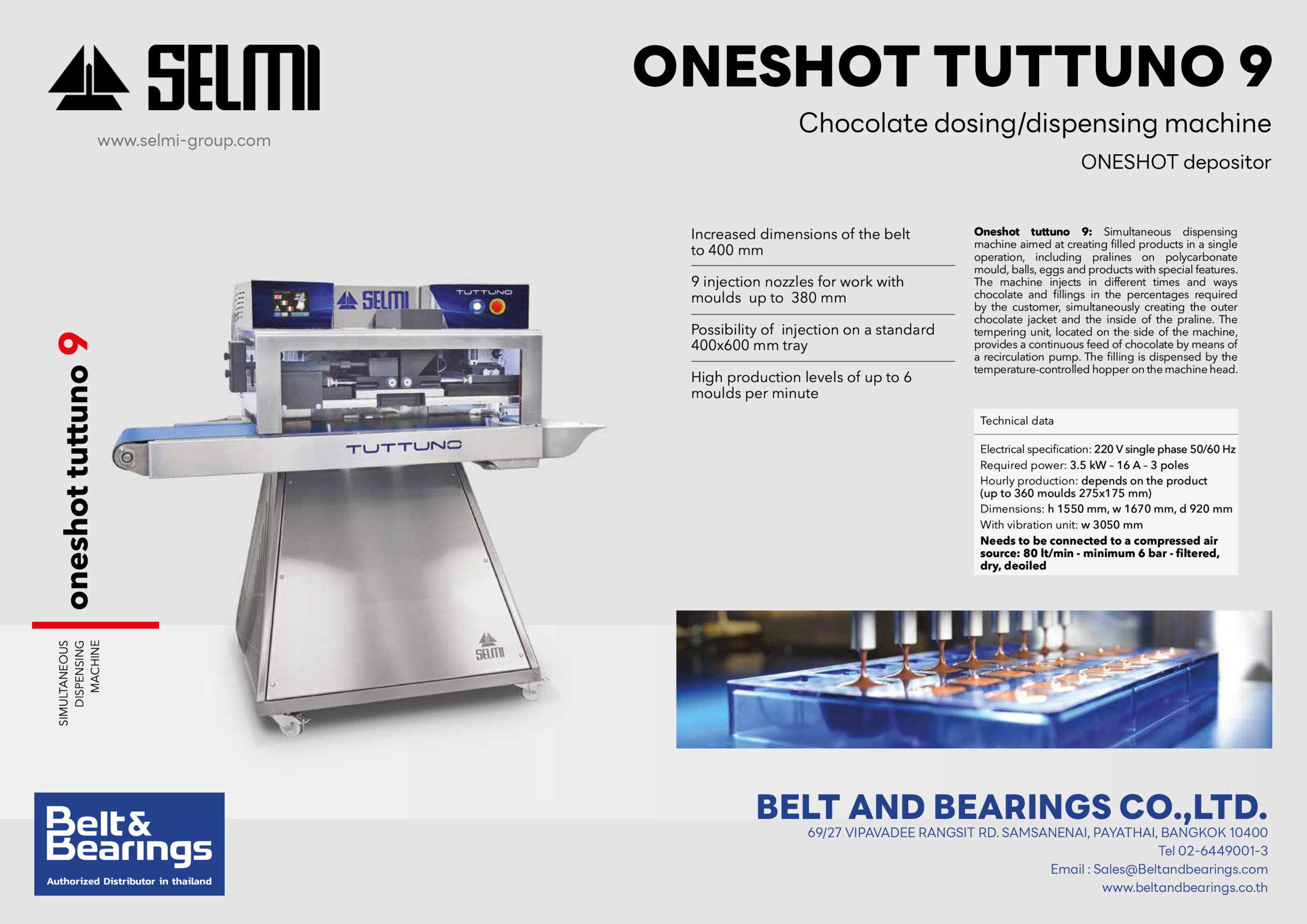

One Shot Tuttuno 9
Chocolate dosing/dispensing machine
ONESHOT depositor

Simultaneous chocolate dosing machine with 8 or 9 nozzles

Oneshot tuttuno 9 : Simultaneous chocolate dosing and dispensing machine aimed at creating chocolate filled products in a single operation, including pralines on polycarbonate mould, chocolate balls, chocolate eggs and chocolate products with special features.

The machine injects chocolate fillings in different percentages, times and modalities, according to the requirements of the user, simultaneously creating the outer chocolate jacket and the inside of the praline.

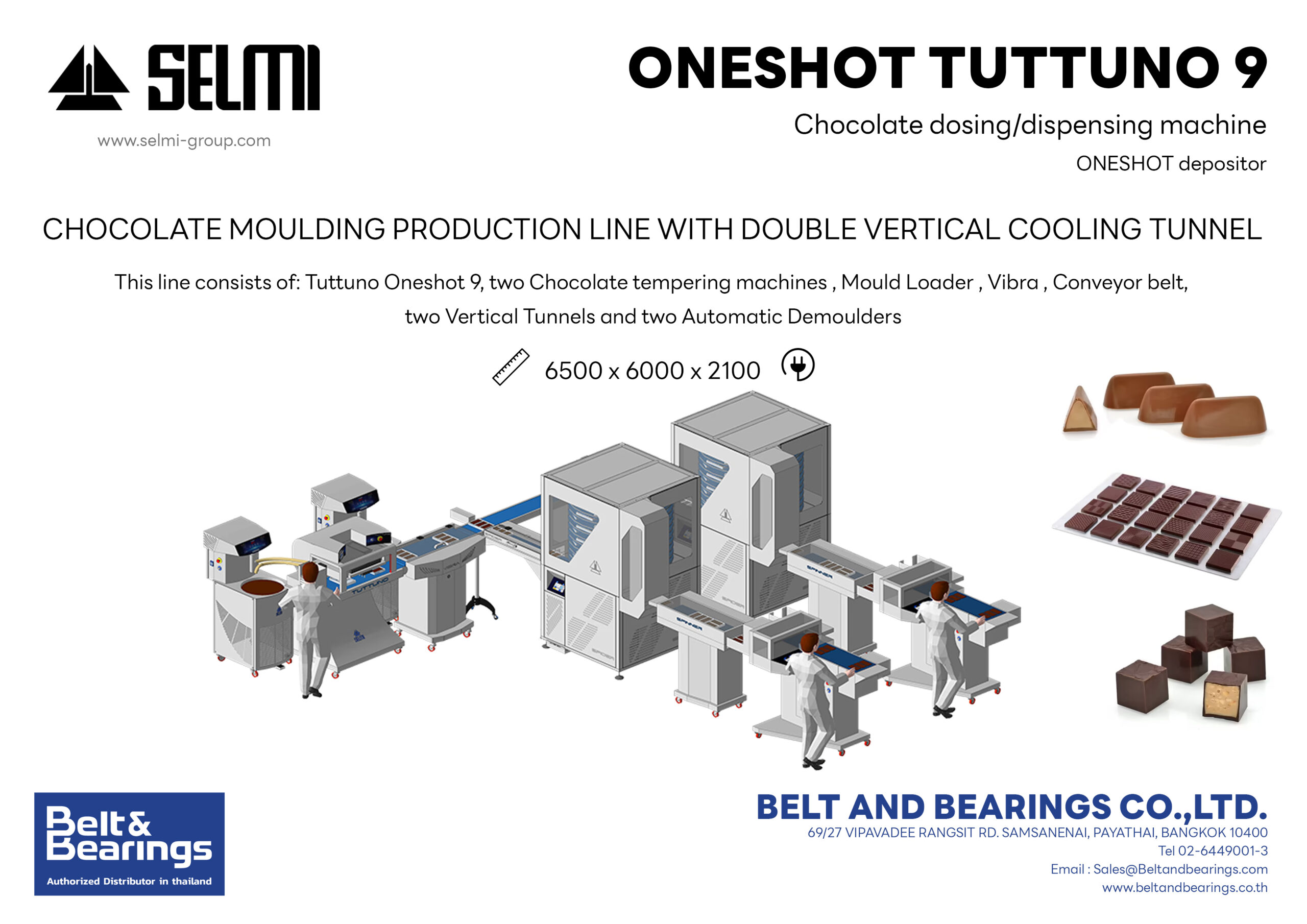

A tempering machine, located behind the ONE SHOT, feeds tempered chocolate in a continuous cycle through a recirculation pump. The chocolate filling is then dispensed by the operator from the thermoregulated hopper at the head of the machine.

Characteristics

• Increased dimensions of the belt to 400 mm

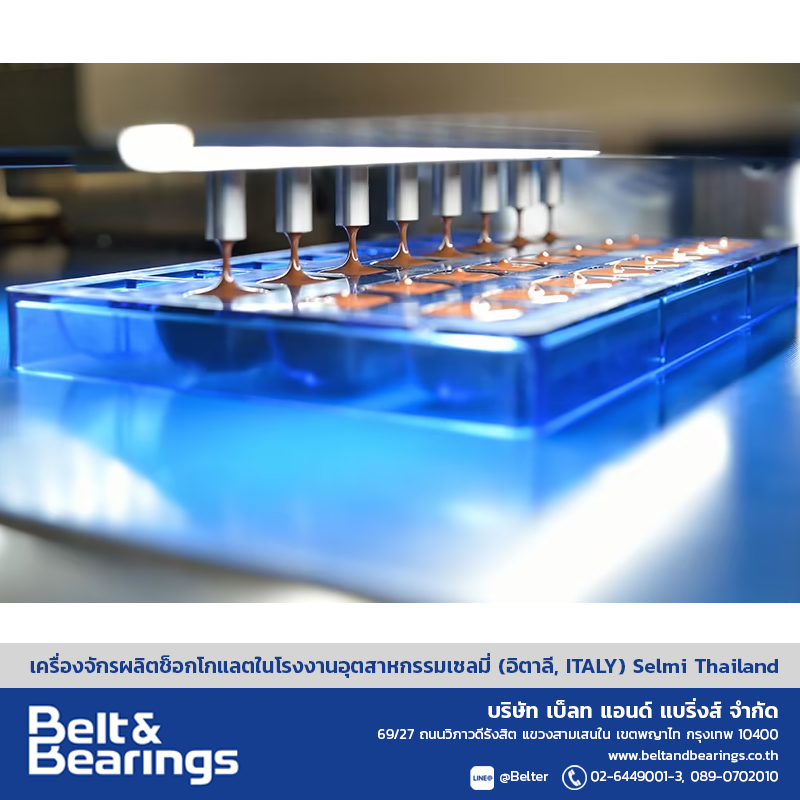

• 9 injection nozzles that allow working on moulds up to 380 mm deep

• Possibility of injecting on standard 400×600 mm trays

• High production: up to 6 moulds per minute

Choose the best solution for your business from a range of predefined configurations.
Rely on the experience and professionalism of SELMI, which has always stood by its customers in choosing the best possible solution!

LEGEND

 LINE DIMENSIONS  REQUIRES POWER SUPPLY  REQUIRES COMPRESSED AIR CONNECTION
