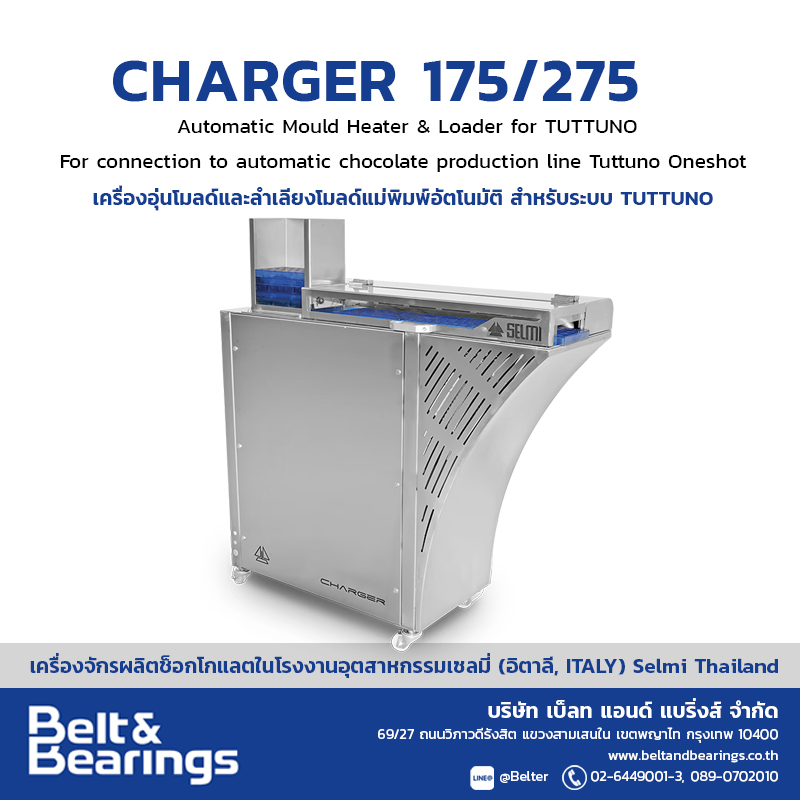

เครื่องอุ่นโมลด์และลำเลียงโมลด์แม่พิมพ์อัตโนมัติ Charger175/275

Charger 175/275

เครื่องอุ่นโมลด์และลำเลียงโมลด์แม่พิมพ์อัตโนมัติ สำหรับระบบ TUTTUNO

Automatic Mould Heater & Loader for TUTTUNO

For connection to automatic chocolate production line Tuttuno Oneshot

Heated Mould Loader for connection to the TUTTUNO Oneshot automatic chocolate production line

The new SELMI CHARGER 175 and 275 combine two functions: mould heating & automatic mould loading. The process of pre-heating moulds gives better results when depositing & filling using a Oneshot machine.

The moulds are heated by hot air and the temperature of which can be regulated via the control panel on the TUTTUNO Oneshot. In addition, the volume of heated air can be adjusted using the slots on the distribution pipe.

– For customers with existing TUTTUNO Oneshot machines, it will be necessary to install a special connection kit. Please contact us for more information.

คุณลักษณะเกี่ยวกับเครื่อง

Charger 175/275

เครื่องอุ่นโมลด์และลำเลียงโมลด์แม่พิมพ์อัตโนมัติ สำหรับระบบ TUTTUNO

Automatic Mould Heater & Loader for TUTTUNO

For connection to automatic chocolate production line Tuttuno Oneshot

Heated Mould Loader for connection to the TUTTUNO Oneshot automatic chocolate production line

The new SELMI CHARGER 175 and 275 combine two functions: mould heating & automatic mould loading. The process of pre-heating moulds gives better results when depositing & filling using a Oneshot machine.

The moulds are heated by hot air and the temperature of which can be regulated via the control panel on the TUTTUNO Oneshot. In addition, the volume of heated air can be adjusted using the slots on the distribution pipe.

– For customers with existing TUTTUNO Oneshot machines, it will be necessary to install a special connection kit. Please contact us for more information.

คุณสมบัติเฉพาะทางเทคนิค

Mechanical Characteristics

Overall dimensions CHARGER 175 1300[L] x 910[W] x 1400[H] mm.
Overall dimensions CHARGER 275 1300[L] x 610[W] x 1400[H] mm.
Empty weight 90/120Kg.
Material in contact with food inox AISI 304 L
Gaskets PTFE



Electrical characteristics

Total installed power [KW] 2
Supply voltage [VAC] 220
Number of phases 3
Frequency [Hz] 50 / 60
Enclosure degree of protection IP65
Connection type : industrial plug 16A – 3 poles



วีดีโอเกี่ยวกับเครื่อง

แคตตาล็อก

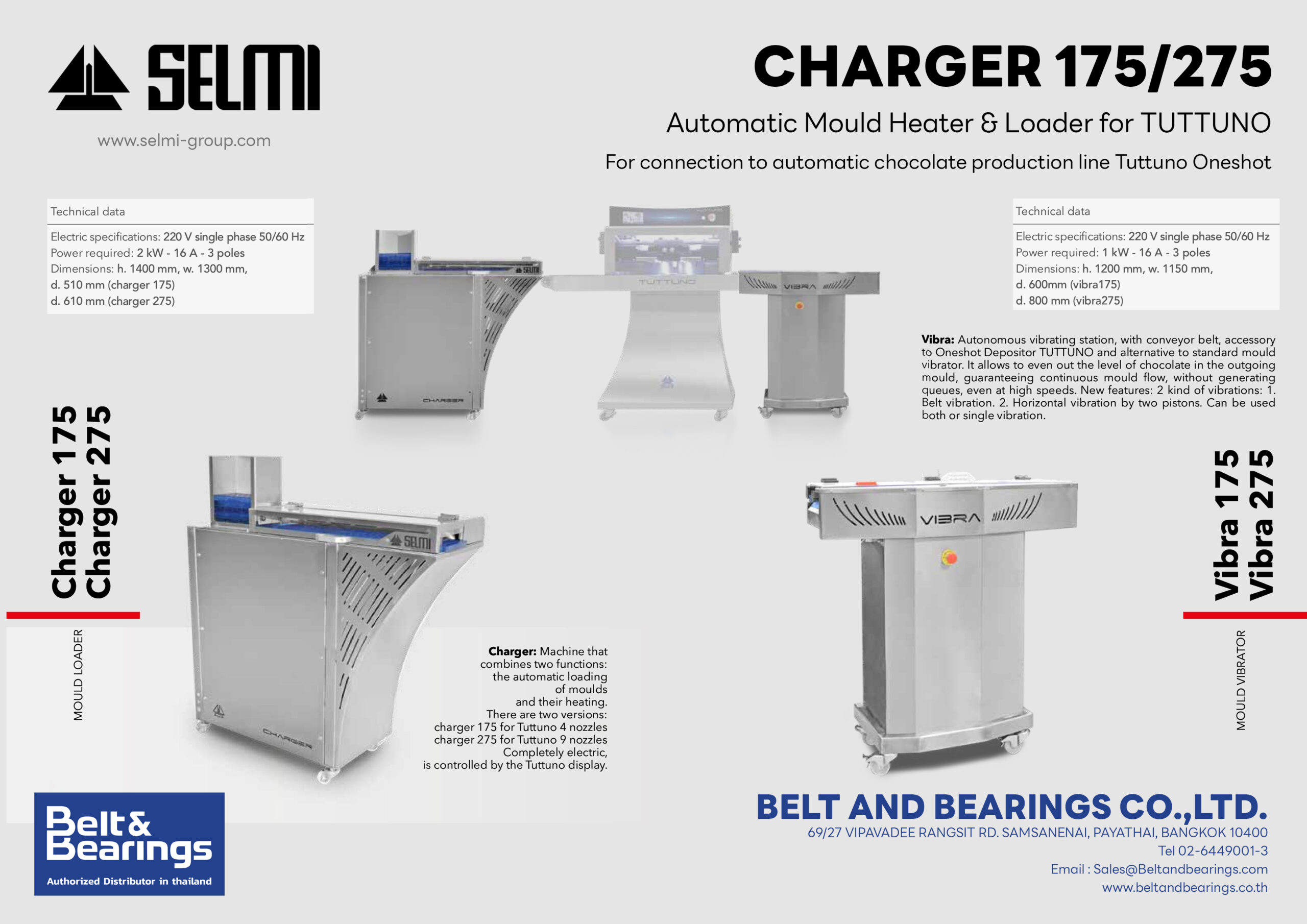

Catalog_เครื่องอุ่นโมลด์และลำเลียงโมลด์แม่พิมพ์อัตโนมัติ CHARGER 175/275

ภาพผลงาน เครื่องติดตั้งจริงหน้างาน แสดงวิธีใช้เครื่อง สอนการใช้งาน

การบำรุงรักษา

เอกสารรับรอง
