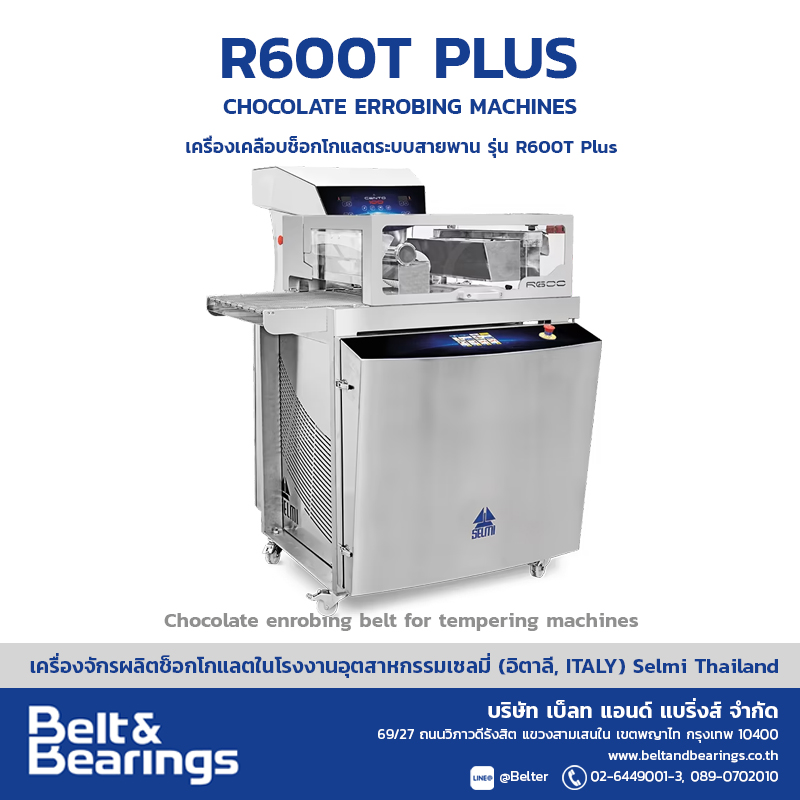

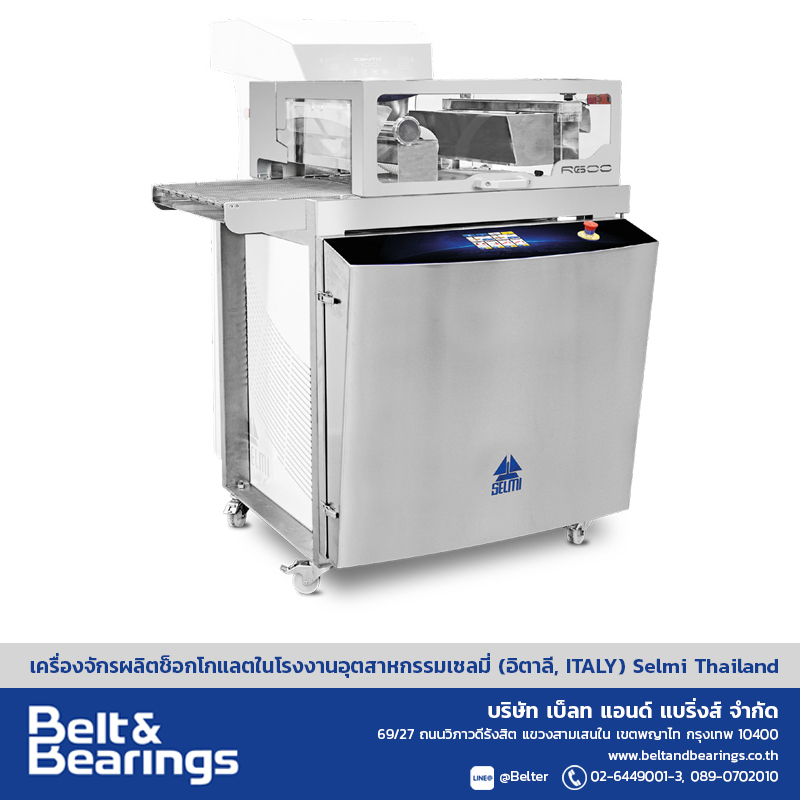

เครื่องเคลือบช็อกโกแลตระบบสายพาน รุ่น R600T PLUS

R600t Plus
Chocolate enrobing belt for tempering machines

Chocolate enrobing machines

หมวดหมู่: เครื่องจักรผลิตช็อกโกแลตในโรงงานอุตสาหกรรมเซลมี่ (อิตาลี, ITALY) Selmi Thailand, เครื่องเคลือบช็อกโกแลตและหัวจ่าย

คุณลักษณะเกี่ยวกับเครื่อง

R600t PLUS
Chocolate enrobing belt for tempering machines

Chocolate enrobing machines

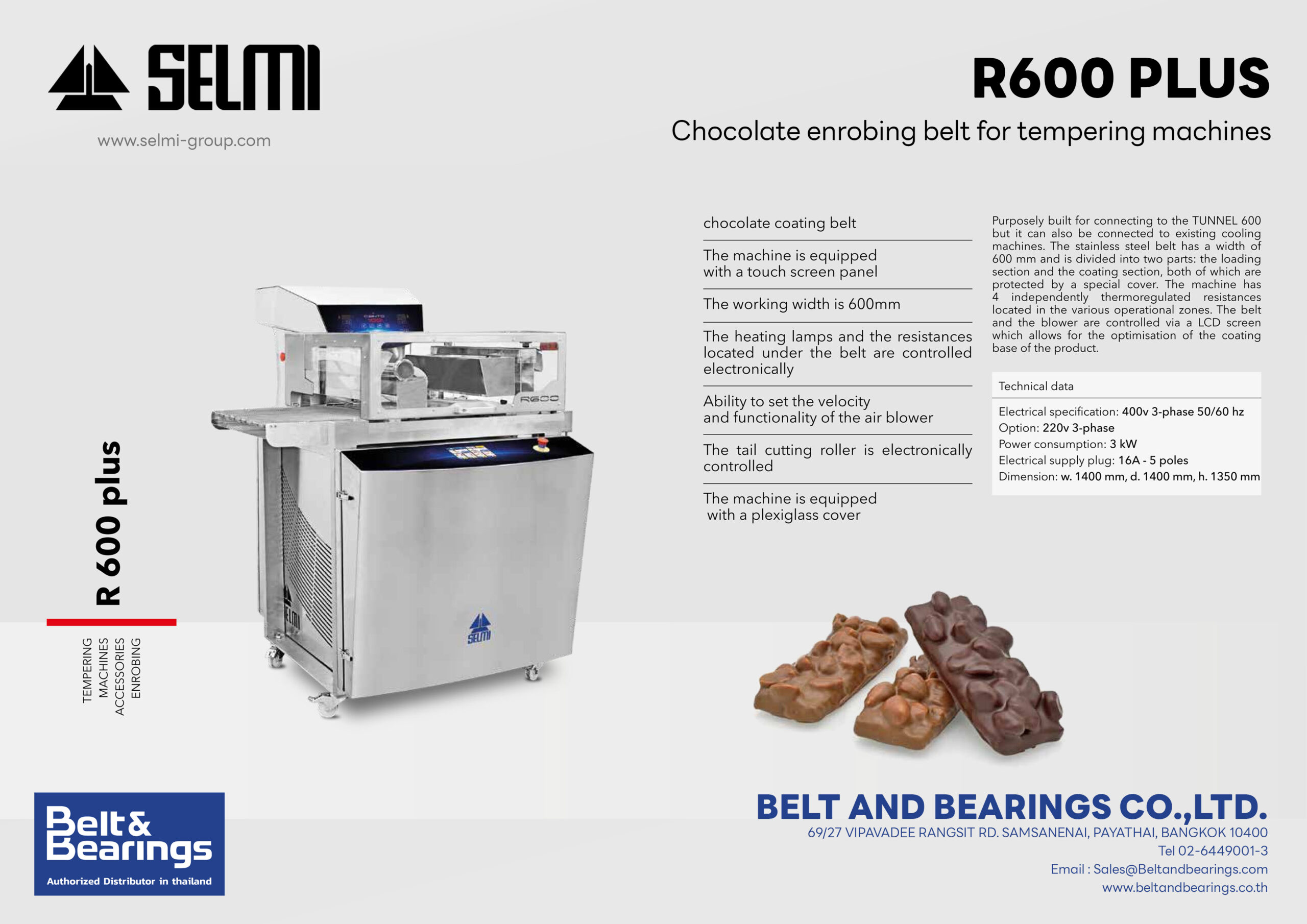

R600T Chocolate enrobing belt specially built for connection to the TUNNEL 600 but it can also be connected to existing cooling machines.

The stainless steel belt has a width of 600 mm and is divided into two parts: the loading section and the coating section, both of which are protected by a special cover.

The machine has 4 independently thermoregulated resistances located in the various operational zones.

The belt and the blower are controlled via a LCD screen which allows for the optimisation of the coating base of the product.

คุณสมบัติเฉพาะทางเทคนิค

Characteristics

The machine is equipped with a touch screen panel.
The working width is 600mm.
The heating lamps and the resistances located under the belt are controlled electronically.
Ability to set the velocity and functionality of the air blower.
The tail cutting roller is electronically controlled.

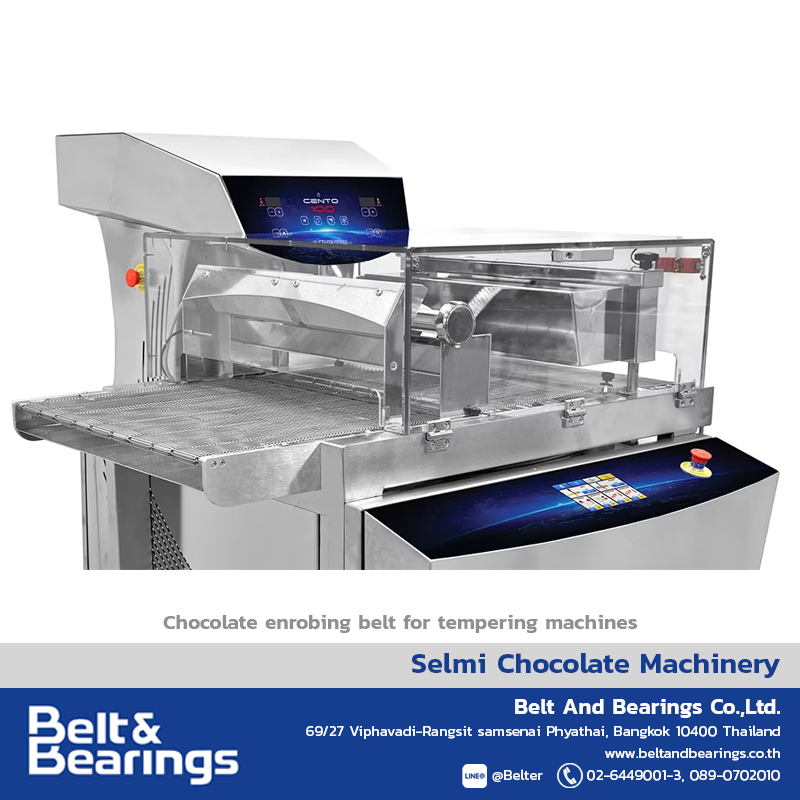

The machine is equipped with a plexiglass cover.

Mechanical Characteristics

Overall dimensions	1400[L] x 1350[W] x 1370 (1565)[H] mm.
Empty weight	200Kg.
Material in contact with food	inox AISI 304L
Gaskets	PTFE
No. of pivoting wheel	4

Electrical characteristics

Total installed power	[KW] 3
Supply voltage	[VAC] 220
Number of phases	1
Frequency	[Hz] 50 / 60
Auxiliary voltage	–
Enclosure degree of protection	IP65
Connection type : industrial plug	16A – 3 poles
