เครื่องผลิตช็อกโกแลตคลัสเตอร์ผสมถั่วอัตโนมัติแบบถาด รุ่น Clusters Trays

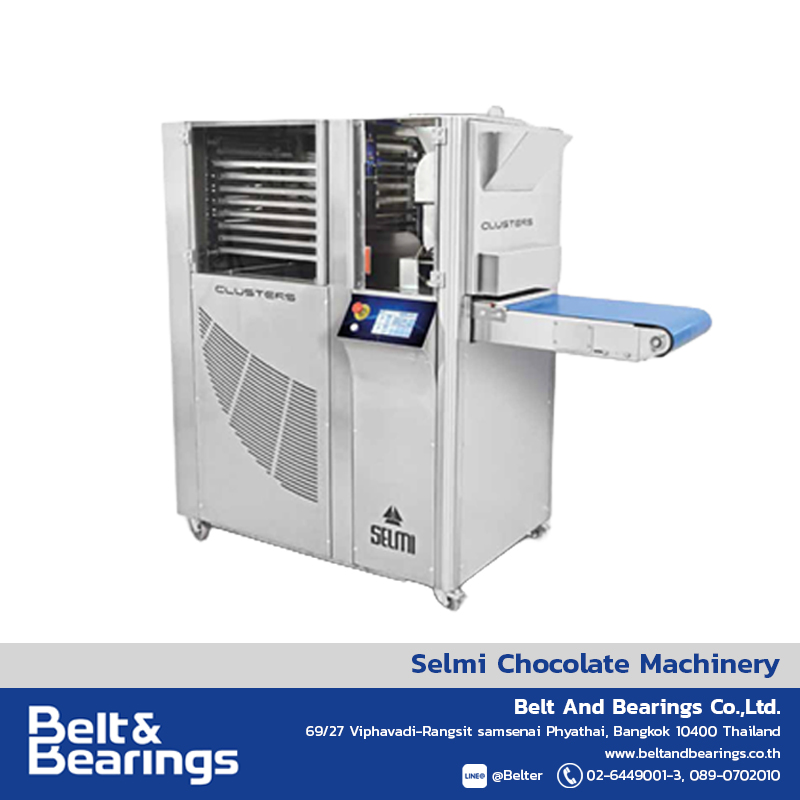

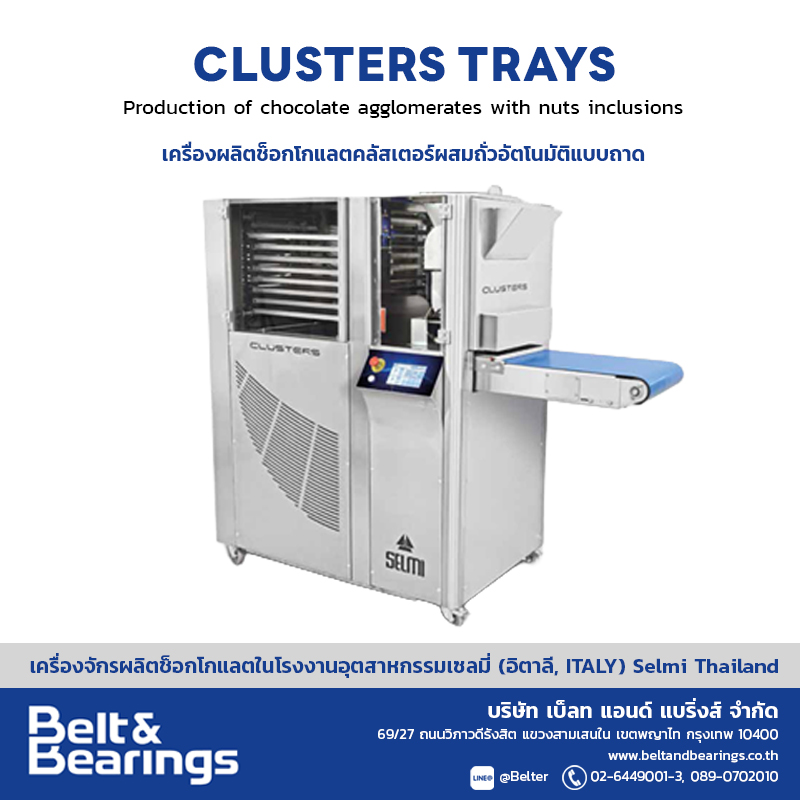

Clusters Trays

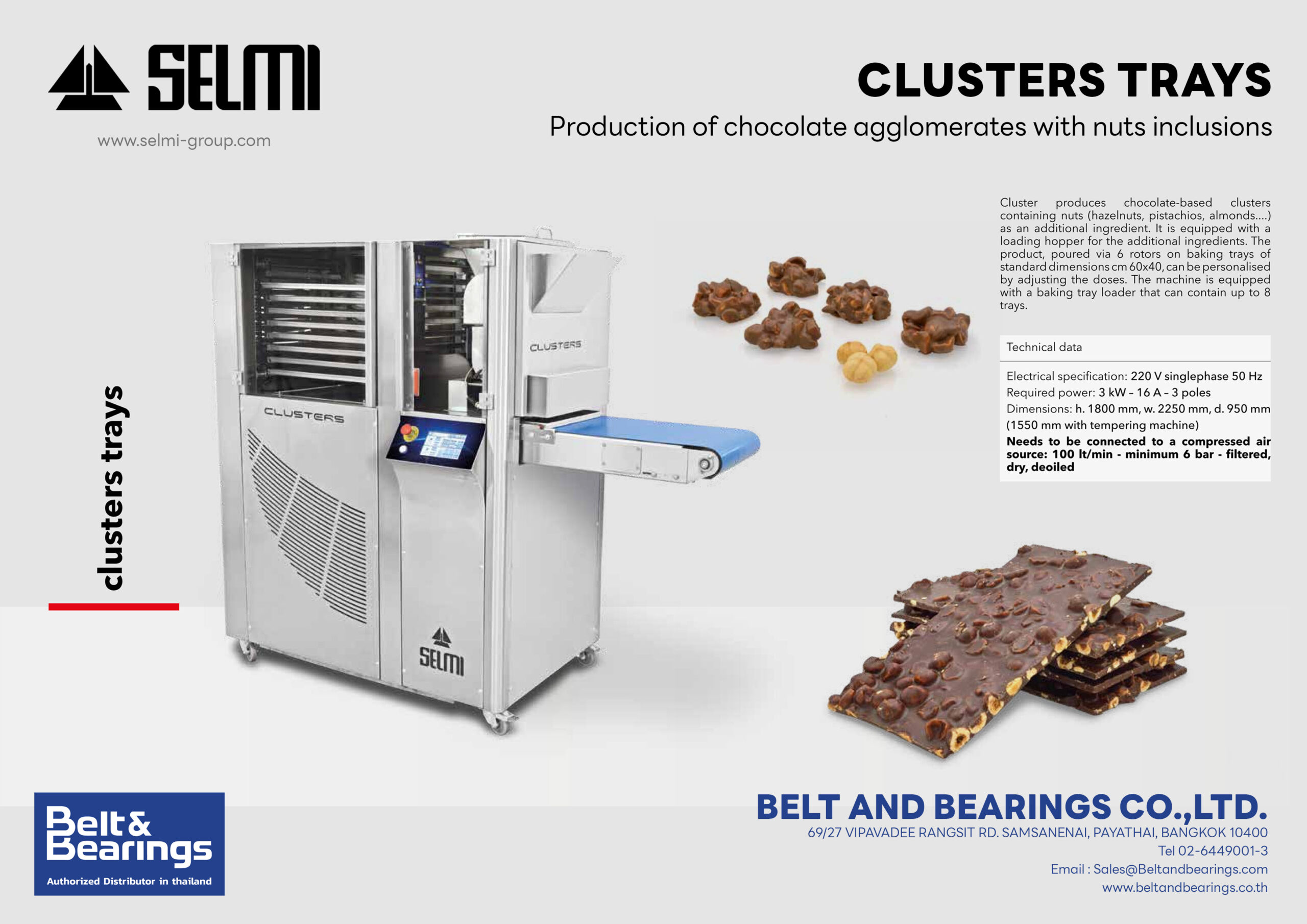

Production of chocolate agglomerates with nuts inclusions
Hourly production: 25-30 kg
Clusters Trays
produces chocolate-based clusters containing nuts (hazelnuts, pistachios, almonds, etc.) as an additional ingredient.
It is equipped with a loading hopper for the additional ingredients. It needs to be connected to a tempering machine provided with a pneumatic valve for the supply of chocolate.

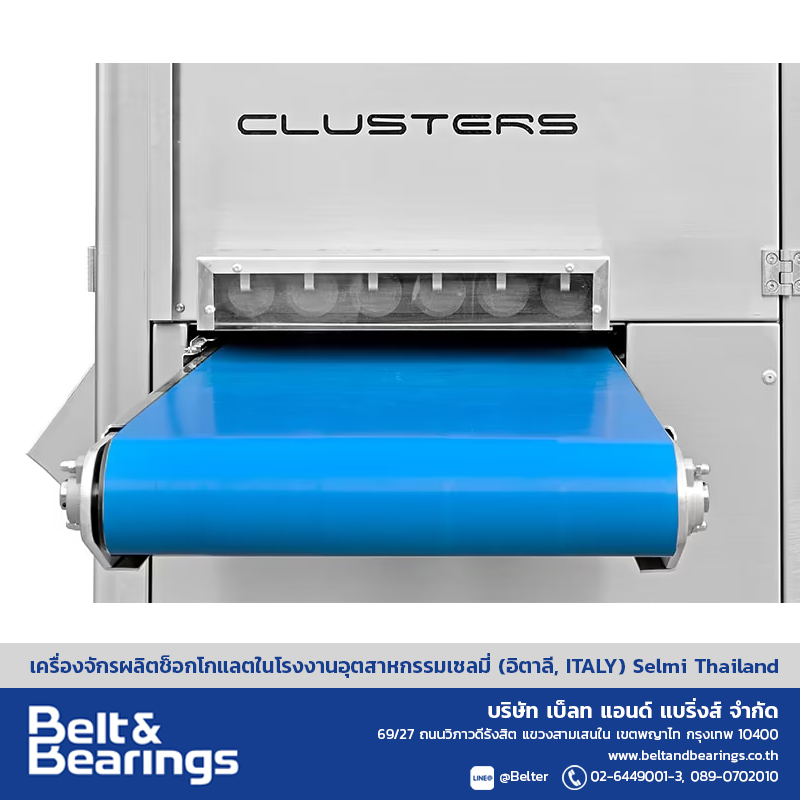

The product, poured via 6 rotors on baking trays of standard dimensions cm 60×40, can be personalised by adjusting the doses.
The machine is equipped with a baking tray loader that can contain up to 8 trays.
- คุณลักษณะเกี่ยวกับเครื่อง
- คุณสมบัติเฉพาะทางเทคนิค
- วีดีโอเกี่ยวกับเครื่อง
- แคตตาล็อก
- ภาพผลงาน เครื่องติดตั้งจริงหน้างาน แสดงวิธีใช้เครื่อง สอนการใช้งาน
- การบำรุงรักษา
- เอกสารรับรอง
คุณลักษณะเกี่ยวกับเครื่อง
Clusters Trays
Production of chocolate agglomerates with nuts inclusions
Hourly production: 25-30 kg
produces chocolate-based clusters containing nuts (hazelnuts, pistachios, almonds, etc.) as an additional ingredient.
It is equipped with a loading hopper for the additional ingredients. It needs to be connected to a tempering machine provided with a pneumatic valve for the supply of chocolate.
The product, poured via 6 rotors on baking trays of standard dimensions cm 60×40, can be personalised by adjusting the doses.
The machine is equipped with a baking tray loader that can contain up to 8 trays.
Applicable to:
- Professional chocolate tempering machine LEGEND
- Professional chocolate tempering machine PLUS EX
- Professional chocolate tempering machine FUTURA EX
- Professional chocolate tempering machine TOP EX
คุณสมบัติเฉพาะทางเทคนิค
Mechanical Characteristics
| Overall dimensions | 22250[L] x 1550[W] x1800[H] mm. |
| Empty weight | 240Kg. |
| Material in contact with food | inox AISI 304 L |
| Gaskets | PTFE |
| Inclusions hopper capacity | 7 L |
| Mix hopper capacity | 10 L |
| N° trays | 8 |
| N° sviwelling wheels | 4 |
| N° roters | 6 |
| Belt Width | [mm] 420 |
Electrical characteristics
| Total installed power | [KW] 3 |
| Supply voltage | [VAC] 220 |
| Number of phases | 1 |
| Frequency | [Hz] 50 / 60 |
| Auxiliary voltage | [Vdc] +24 |
| Enclosure degree of protection | IP65 |
| Connection type : industrial plug | 16A – 3 poles |
Characteristics Pneumatic system
| Minimum working pressure | [bar] 6 |
| Minimum flow rate | l/min] 100 |
| Air Characteristics | Filtered, dry and de-oiled |
Process features
| Hourly production | [Kg] 25/30 |
