เครื่องผสมและละลายช็อกโกแลตอัตโนมัติ รุ่น Tank 400

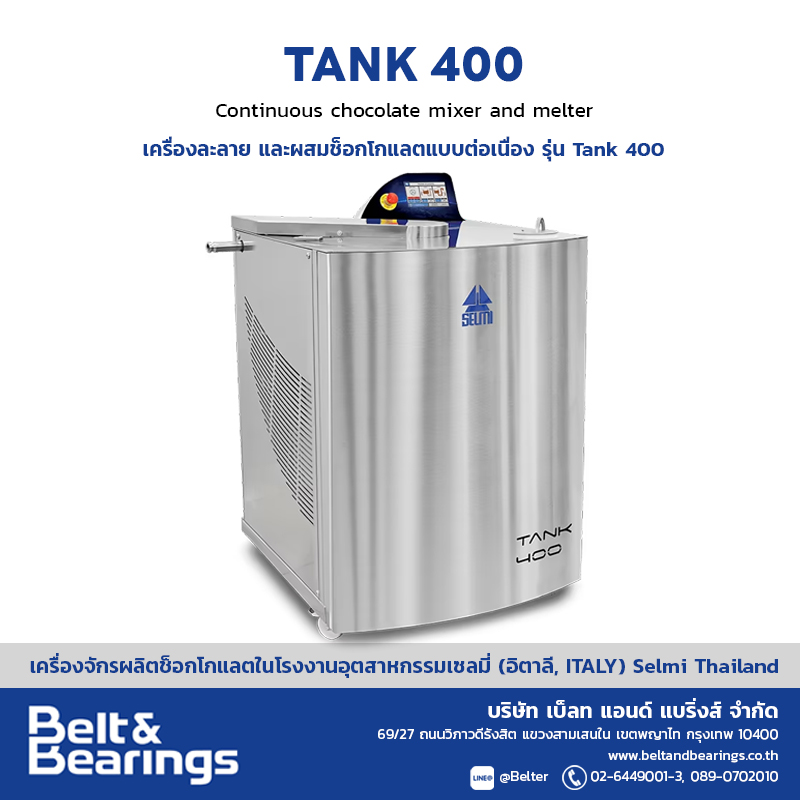

Tank 400
Continuous chocolate mixer and melter

Chocolate mixer and melter machines

New model! Renewed design , with large top opening that makes the tank completely accessible and sanitizable . It is possible to order the machine with the chocolate dispensing spout on the right or left side.
Dry tank heating . Only requires power supply connection.

คุณลักษณะเกี่ยวกับเครื่อง

Tank 400
Continuous chocolate mixer and melter

Chocolate mixer and melter machines

New model! Renewed design , with large top opening that makes the tank completely accessible and sanitizable . It is possible to order the machine with the chocolate dispensing spout on the right or left side.
Dry tank heating . Only requires power supply connection.

The Tank 400 Continuous chocolate mixer and melter is entirely built in stainless steel AISI 304.

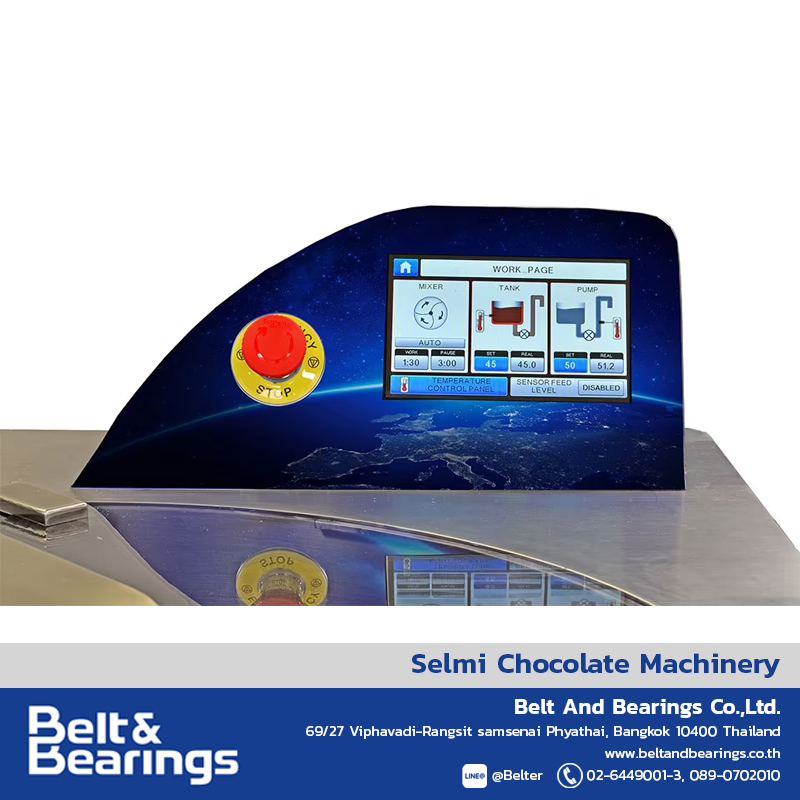

The mixer can be operated in a continuous or intermittent mode with programmable temperatures and timed mixing .
The heating of the tank and of the exit conduit are separately thermoregulated .

Integrated pump for feeding chocolate to tempering machines.

Characteristics

  • Equipped with a pedal or button controlled screw pump for the extraction of chocolate.
  • The pump reverses its direction of rotation at the end of each working cycle to clean the tubing.
  • This machine can be ordered with the pump emission point on the right or on the left side.

คุณสมบัติเฉพาะทางเทคนิค

Mechanical Characteristics

Overall dimensions 880[L] x 1000[W] x1350[H] mm.
Empty weight 573Kg.
Material in contact with food inox AISI 304 L
Gaskets PTFE
Tank Capacity 350 Kg
N° sviwelling wheels 4

Electrical characteristics

Total installed power [KW] 5
Supply voltage [VAC] 400/220
Number of phases 3
Frequency [Hz] 50 / 60
Auxiliary voltage [Vdc] +24
Enclosure degree of protection IP65
Connection type : industrial plug 16A – 5 poles



Characteristics Pneumatic system

Tank reducer radio 1:100,2
Maximum mixer revolutions [rpm] 14,6

วีดีโอเกี่ยวกับเครื่อง

แคตตาล็อก

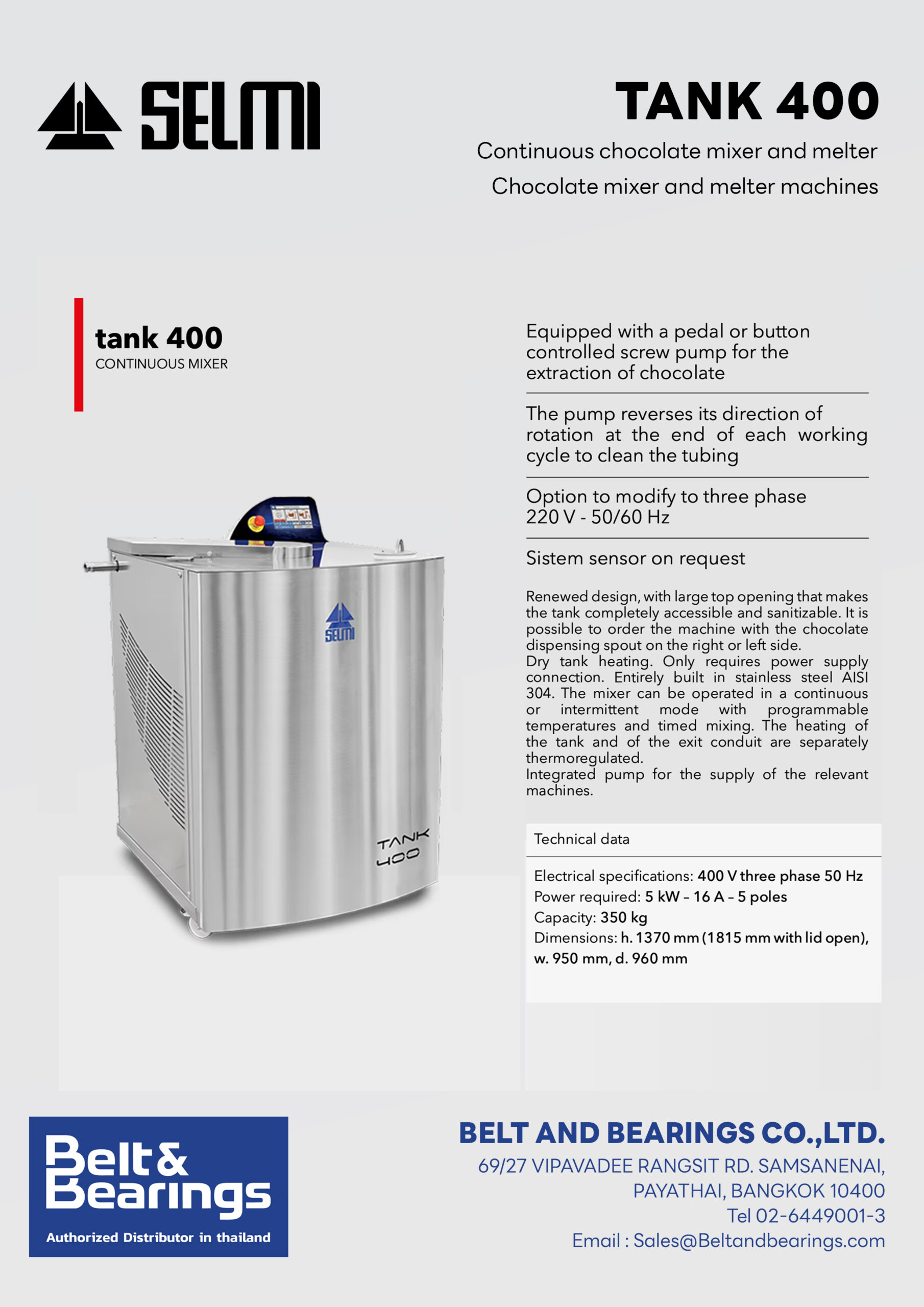

Catalog_เครื่องผสมและละลายช็อกโกแลตอัตโนมัติ รุ่น Tank 400
