เครื่องผสมและละลายช็อกโกแลตอัตโนมัติ รุ่น Tank 200

Tank 200
Continuous chocolate mixer and melter

Chocolate mixer and melter machines

New model! Renewed design , with large top opening that makes the tank completely accessible and sanitizable . It is possible to order the machine with the chocolate dispensing spout on the right or left side.

คุณลักษณะเกี่ยวกับเครื่อง

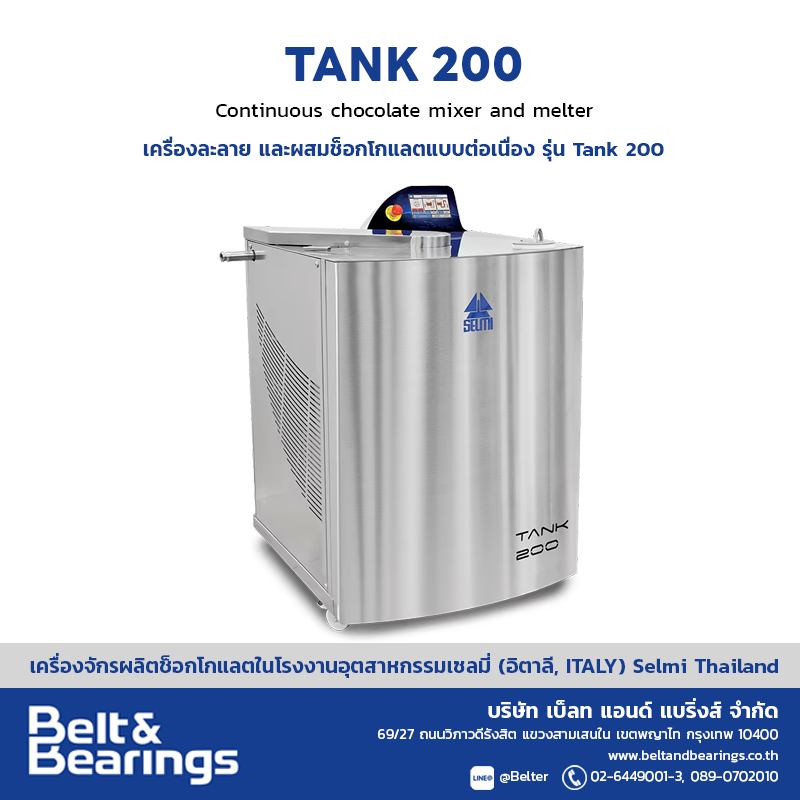

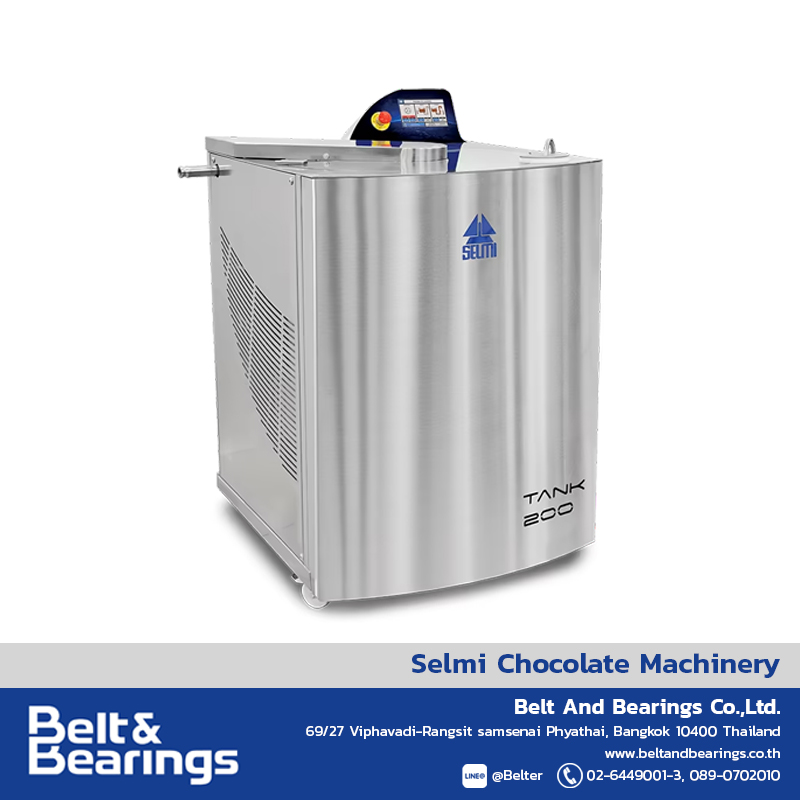

Tank 200
Continuous chocolate mixer and melter

Chocolate mixer and melter machines

New model! Renewed design , with large top opening that makes the tank completely accessible and sanitizable . It is possible to order the machine with the chocolate dispensing spout on the right or left side.
Dry tank heating . Only requires power supply connection.

The chocolate mixing and melter Tank 200 is entirely built in stainless steel AISI 304.
The mixer can be operated in a continuous or intermittent mode with programmable temperatures and timed mixing .
The heating of the tank and of the exit conduit are separately thermoregulated .

Integrated pump for feeding chocolate to tempering machines.

Characteristics

  • Equipped with a pedal or button controlled screw pump for the extraction of chocolate.
  • The pump reverses its direction of rotation at the end of each working cycle to clean the tubing.
  • This machine can be ordered with the pump emission point on the right or on the left side.

คุณสมบัติเฉพาะทางเทคนิค

Mechanical Characteristics

Overall dimensions 880[L] x 1000[W] x1350[H] mm.
Empty weight 380Kg.
Material in contact with food inox AISI 304 L
Gaskets PTFE
Tank Capacity 200 Kg
N° sviwelling wheels 4

Electrical characteristics

Total installed power [KW] 4
Supply voltage [VAC] 400/220
Number of phases 3
Frequency [Hz] 50 / 60
Auxiliary voltage [Vdc] +24
Enclosure degree of protection IP65
Connection type : industrial plug 16A – 3 poles



Characteristics Pneumatic system

Tank reducer radio 1:100,2
Maximum mixer revolutions [rpm] 14,6

วีดีโอเกี่ยวกับเครื่อง

แคตตาล็อก

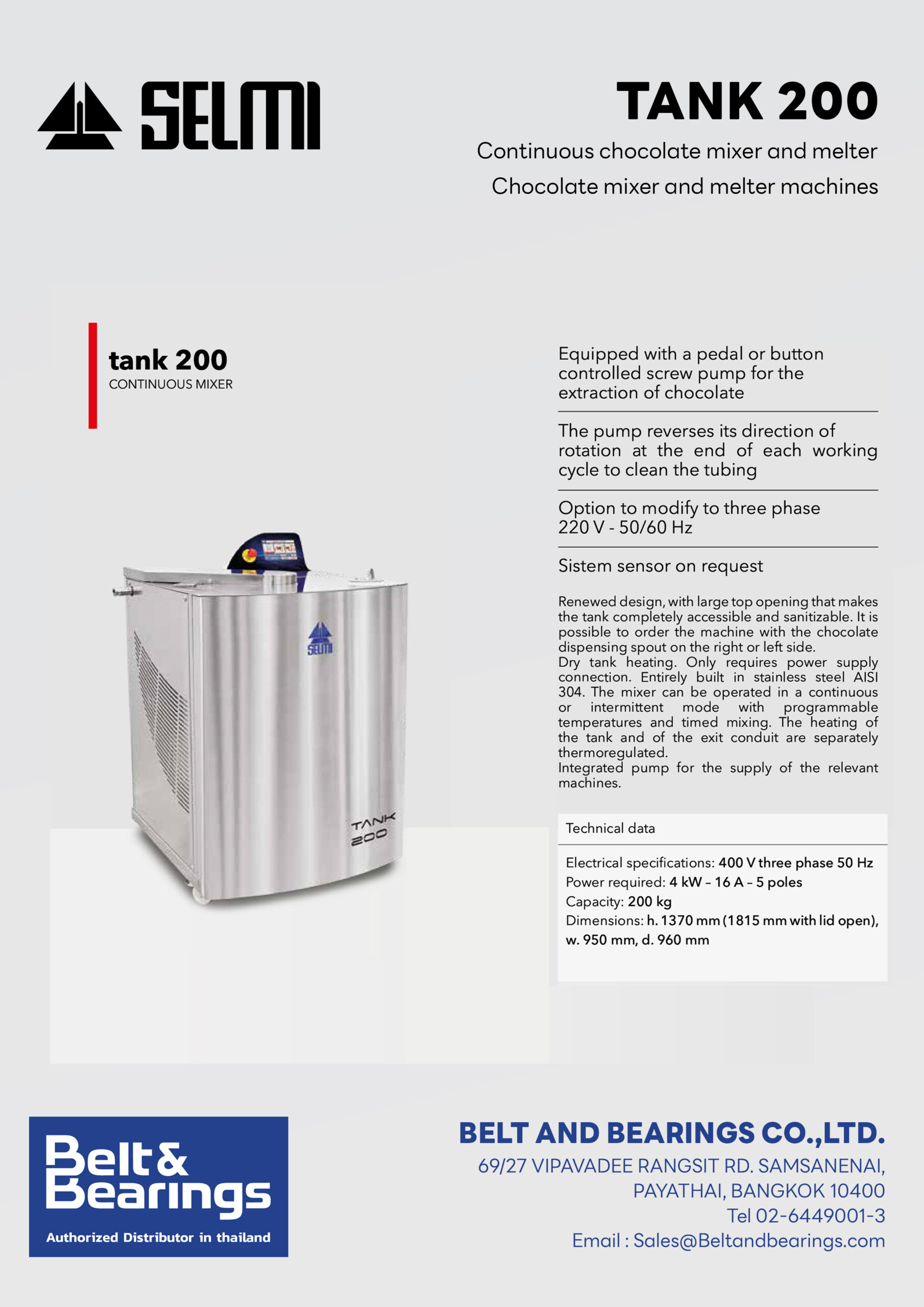

Catalog_เครื่องผสมและละลายช็อกโกแลตอัตโนมัติ รุ่น Tank 200
