Chocolate modelling machine
Benchtop chocolate and creams filler and injector for pots
This machine is designed for the potting of spreadable creams of medium and high density and viscosity. The gear pump is built of alimentary grade aluminium and can inject at pressures of up to 4 atmospheres.
The body of the pump can be completely dismantled and cleaned in just a few minutes and thus facilitates the changing of the cream to be potted. It is particularly suitable for clients who produce pastes and alimentary conserves of all types.
- About the machine
- Specification Table
- Watch Video
- Download Catalog
- Photo from Customers
- How to use and After-service
- Certificate
About the machine

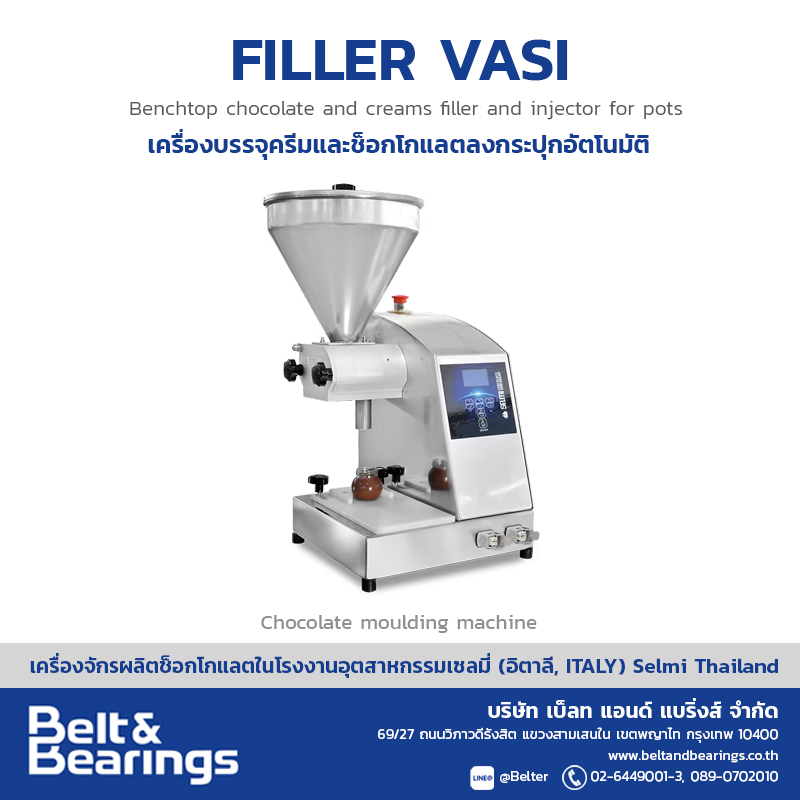

Filler Vasi
Chocolate modelling machine
Benchtop chocolate and creams filler and injector for pots
This machine is designed for the potting of spreadable creams of medium and high density and viscosity. The gear pump is built of alimentary grade aluminium and can inject at pressures of up to 4 atmospheres.
The body of the pump can be completely dismantled and cleaned in just a few minutes and thus facilitates the changing of the cream to be potted. It is particularly suitable for clients who produce pastes and alimentary conserves of all types.
Specification Table
Mechanical Characteristics

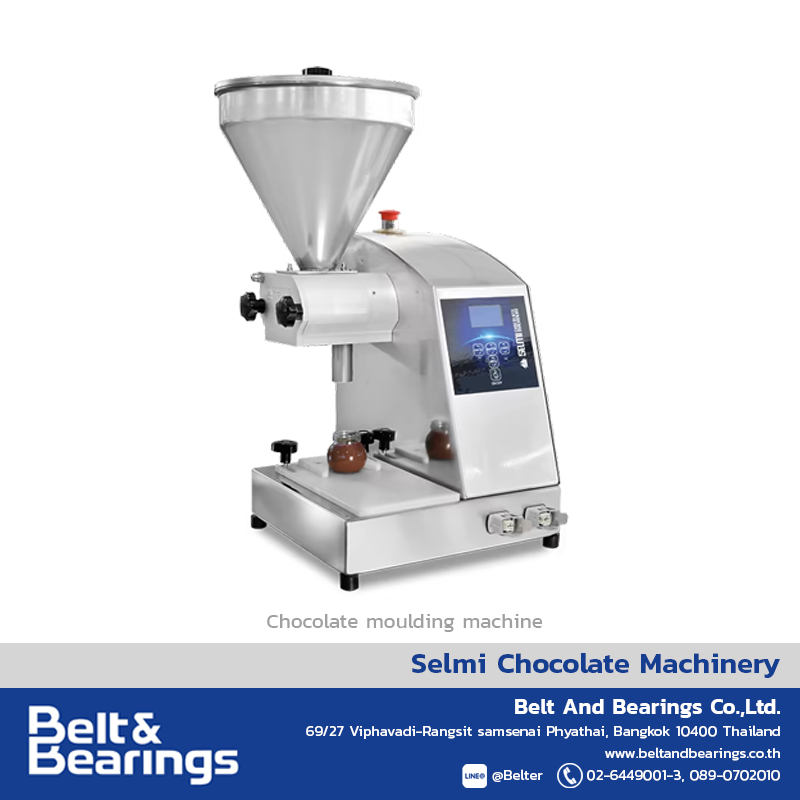

Technical specifications Filler Vasi
| Overall dimensions | 450[L] x 450[W] x 720[H] mm. |
| Tank Capacity | 6 Kg. |
| Material in contact with food | inox AISI 304 L |
| Gaskets | PTFE |
| Hopper capacity | [kg] 6 |

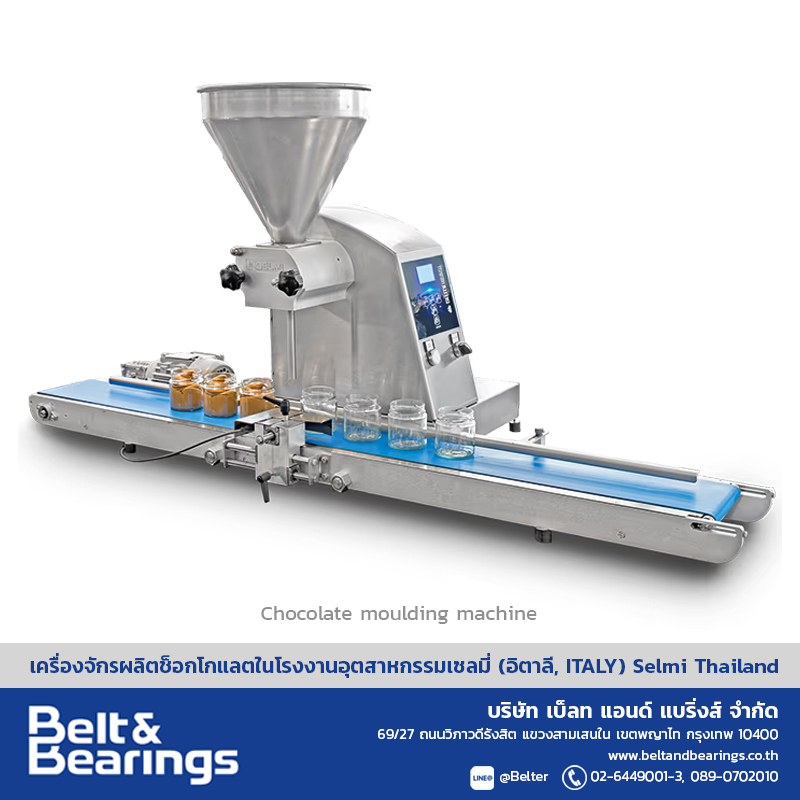

Technical specifications Filler Vasi Automatic
| Overall dimensions | 720[L] x 1510[W] x 700[H] mm. |
| Tank Capacity | 6 Kg. |
| Material in contact with food | inox AISI 304 L |
| Gaskets | PTFE |
| Hopper capacity | [kg] 6 |
Electrical characteristics
| Total installed power | [KW] 0.9 |
| Supply voltage | [VAC] 400 |
| Number of phases | 3 |
| Frequency | [Hz] 50 / 60 |
| Auxiliary voltage | – |
| Enclosure degree of protection | IP65 |
| Connection type : industrial plug | 16A – 5 poles |
Process features
| Hourly Production | [Kg] 50 |
Watch Video

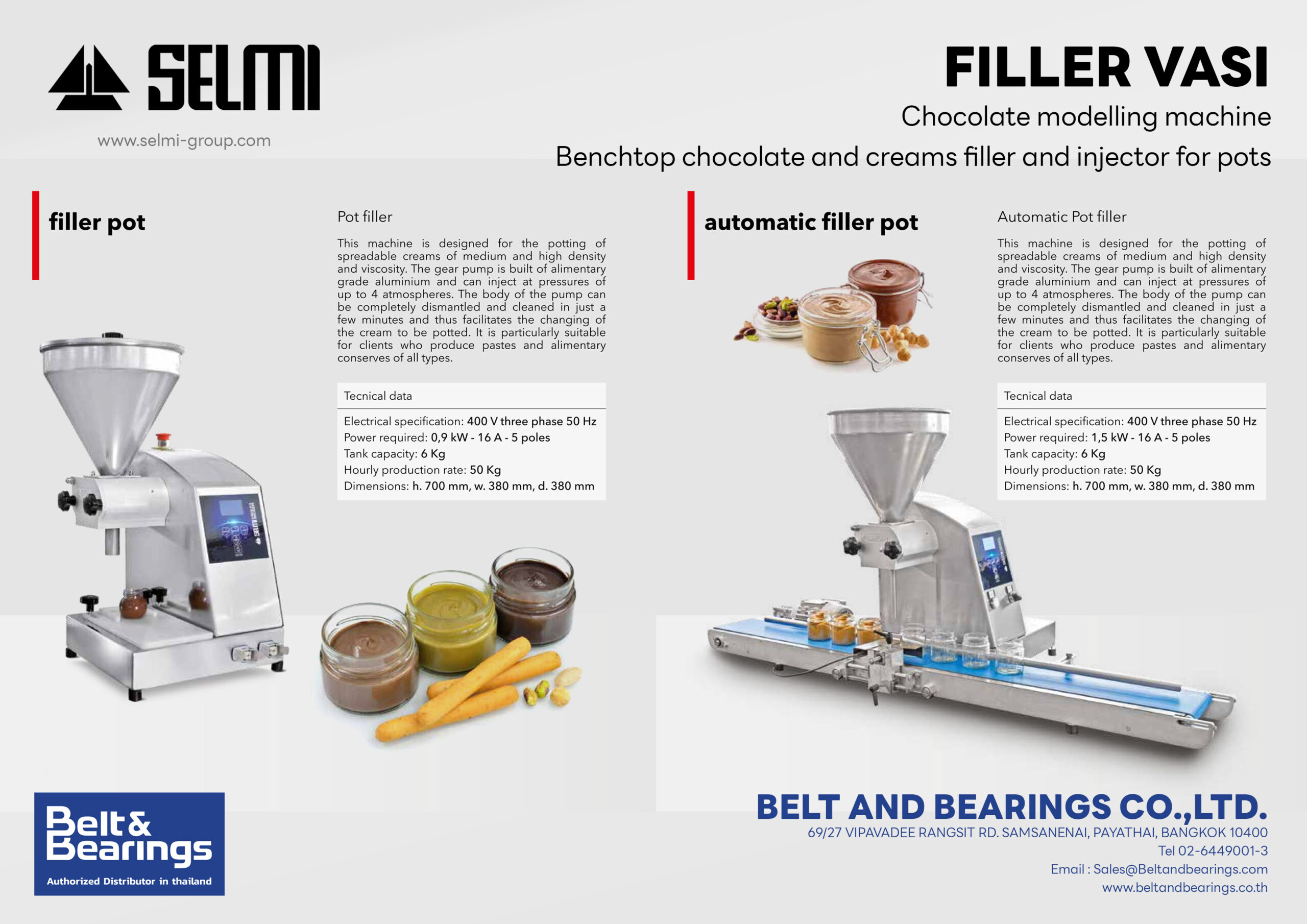

Download Catalog
 |
