Galileo Rotating machine for chocolate hollow bodies
Galileo
Chocolate modelling machine
Rotating machine for chocolate hollow bodies

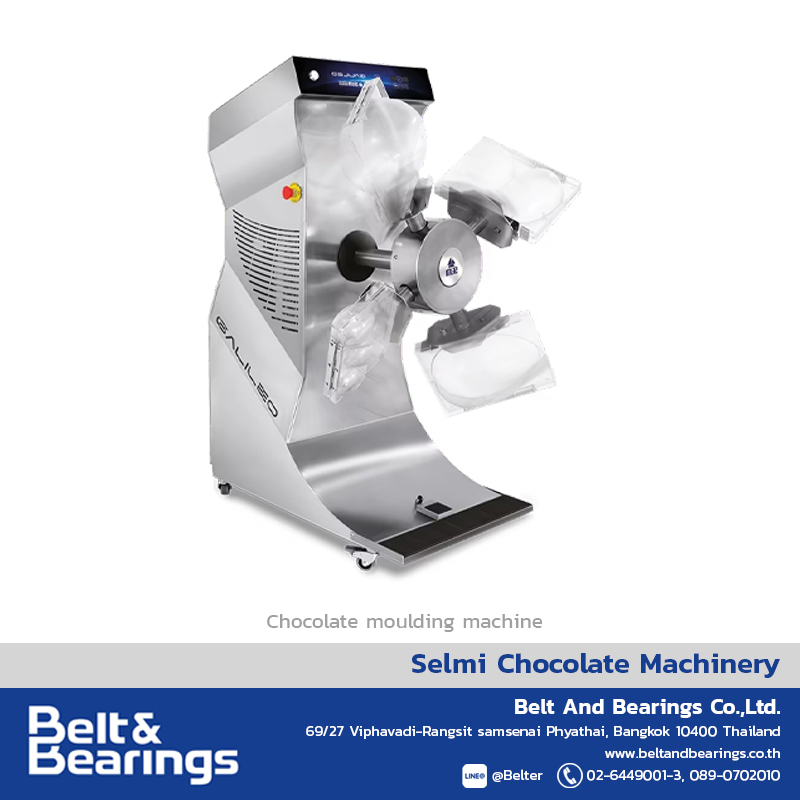

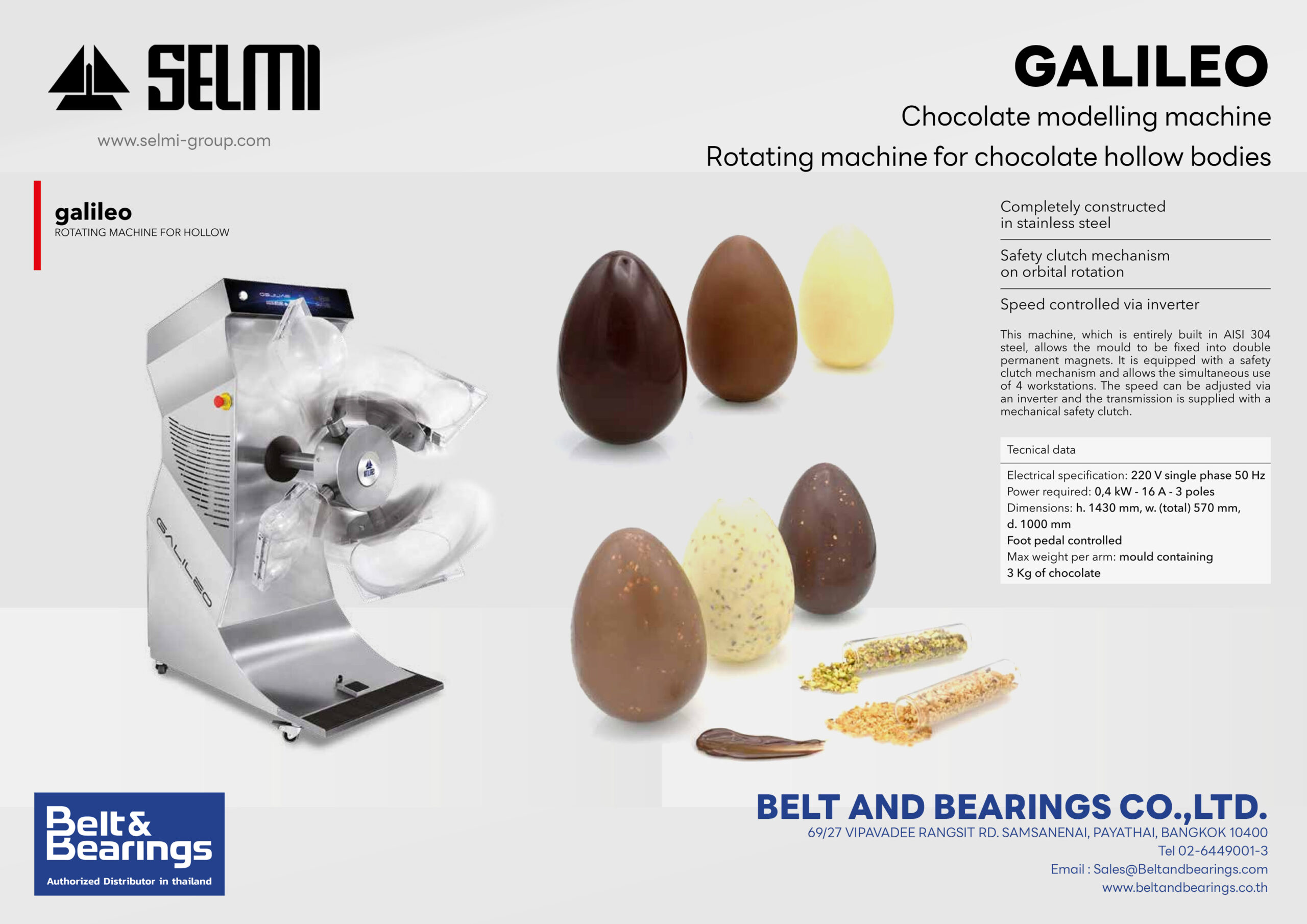

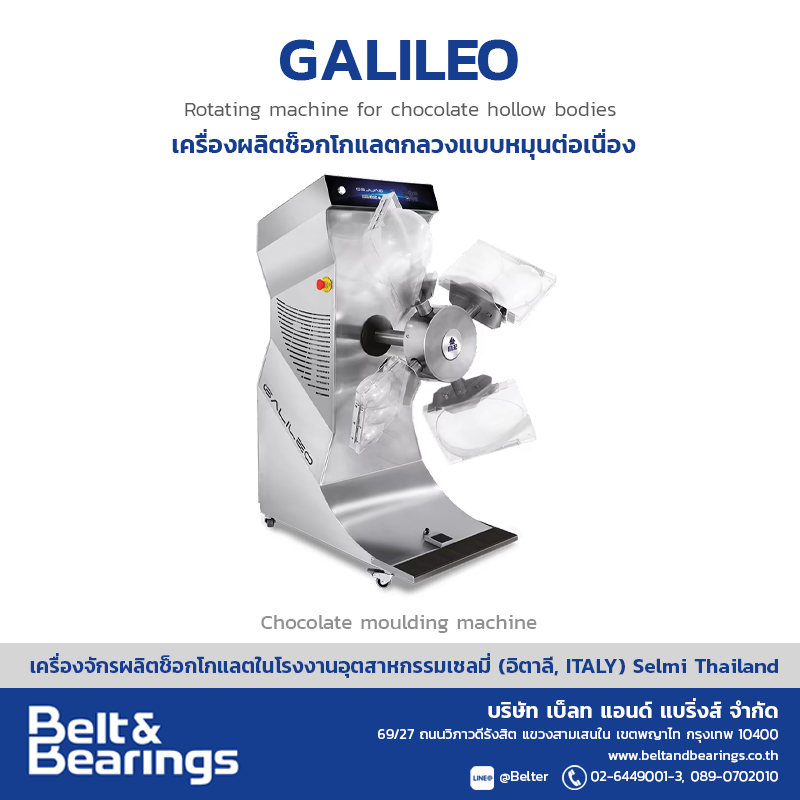

The rotating machine for chocolate hollow bodies Galileo, which is entirely built in AISI 304 steel, allows the mould to be fixed onto double permanent magnets.
It is equipped with a safety clutch mechanism and allows the simultaneous use of 4 workstations.
The speed can be adjusted via an inverter and the transmission is supplied with a mechanical safety clutch.
- About the machine
- Specification Table
- Watch Video
- Download Catalog
- Photo from Customers
- How to use and After-service
- Certificate
About the machine
Galileo
Chocolate modelling machine
Rotating machine for chocolate hollow bodies
The rotating machine for chocolate hollow bodies Galileo, which is entirely built in AISI 304 steel, allows the mould to be fixed onto double permanent magnets.
It is equipped with a safety clutch mechanism and allows the simultaneous use of 4 workstations.
The speed can be adjusted via an inverter and the transmission is supplied with a mechanical safety clutch.
Characteristics
- Completely constructed in stainless steel.
- Safety clutch mechanism on orbital rotation.
- Speed controlled via inverter.
Specification Table
Mechanical Characteristics
| Overall dimensions | 650[L] x 970W] x 1450[H] mm. |
| Tank Capacity | 140 Kg. |
| Material in contact with food | inox AISI 304 L |
| Gaskets | PTFE |
| Arm max capacity | [kg] 3 |
Electrical characteristics
| Total installed power | [KW] 0.4 |
| Supply voltage | [VAC] 220 |
| Number of phases | 1 |
| Frequency | [Hz] 50 / 60 |
| Auxiliary voltage | – |
| Enclosure degree of protection | IP65 |
| Connection type : industrial plug | 16A – 3 poles |
Process features
| Hourly Production | – |
