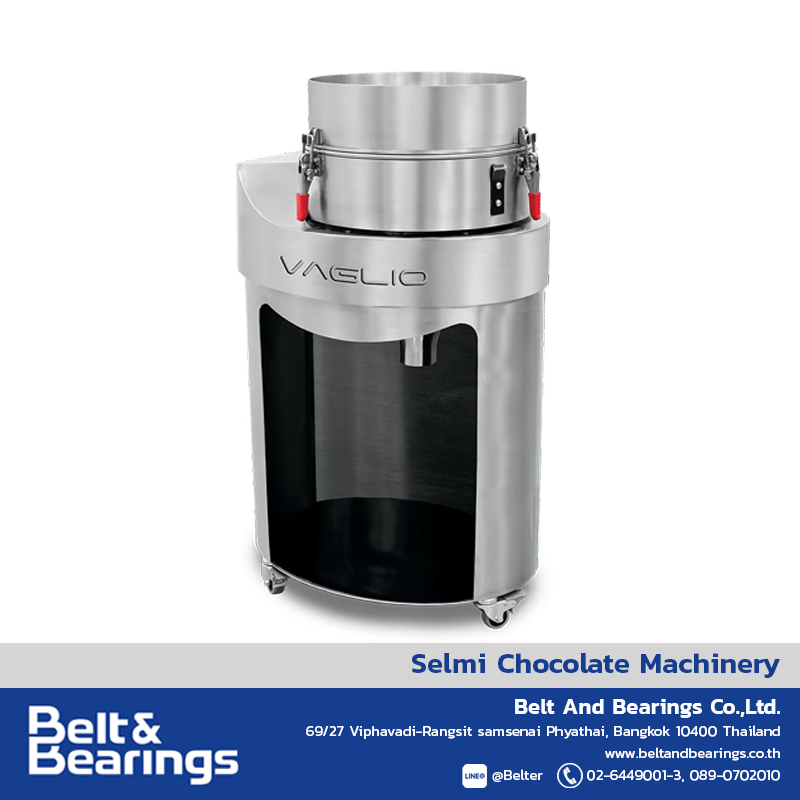

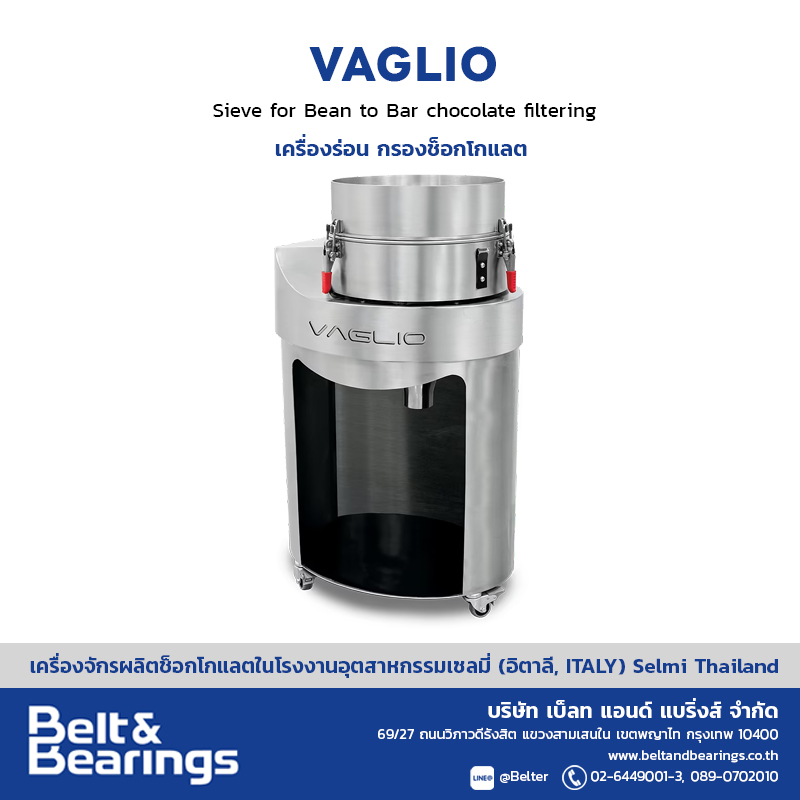

Sieve for Bean to Bar chocolate filtering

Bean to Bar chocolate production line

Last component of the Selmi Bean to Bar Line , Vaglio has the function of sifting, via a vibration system, the chocolate after the final refining.

About the machine

Vaglio

Sieve for Bean to Bar chocolate filtering

Bean to Bar chocolate production line

Last component of the Selmi Bean to Bar Line , Vaglio has the function of sifting, via a vibration system, the chocolate after the final refining.

This process eliminates the residual excess fibre and foreign bodies, in order to ensure the safety of the product and to obtain an output compound of about 16 microns: granulometry imperceptible to the palate.

The stability of the machine has been optimised and its performance improved, thanks to an increase in the sieving surface and vibration intensity .

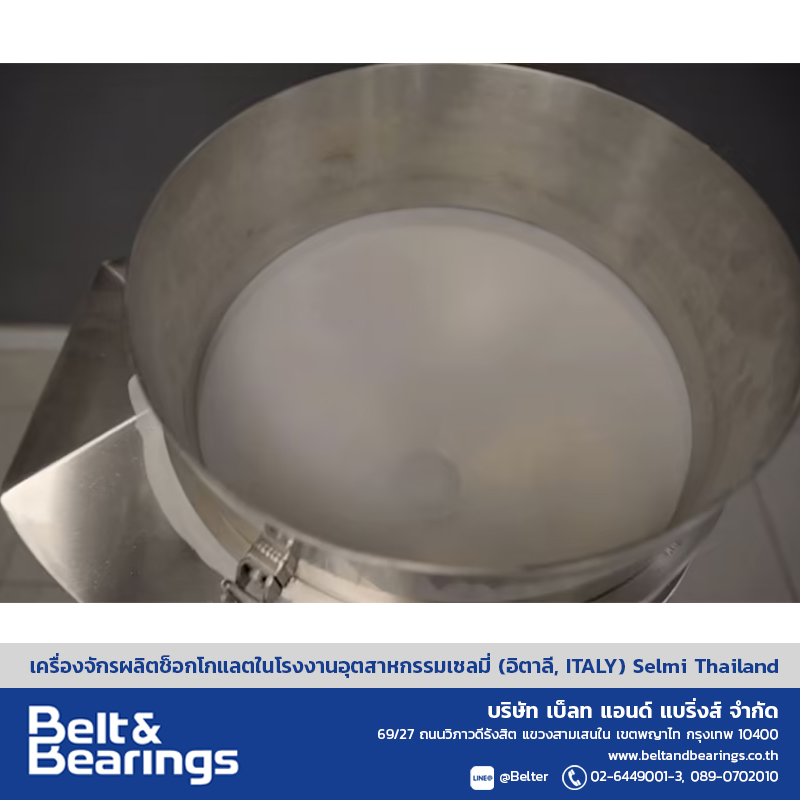

Easily removable and washable loading hopper.



Characteristics

  • Compact dimensions.

  • Final automated sieve aimed at filtering out the impurities introduced during processing.

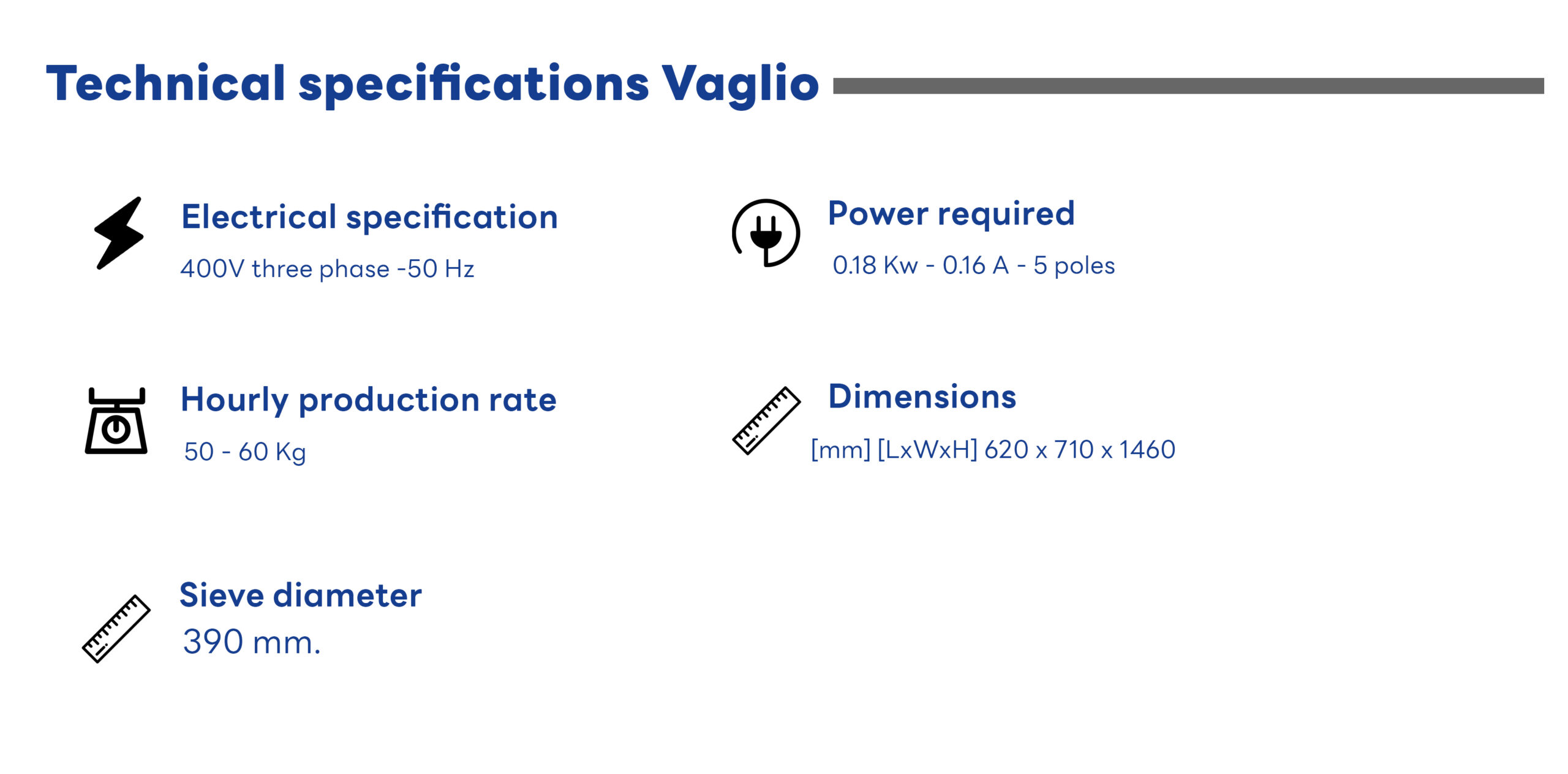

Specification Table

Mechanical Characteristics

Overall dimensions 580[L] x 465[W] x1000[H] mm.
Empty weight [kg] 56
Material in contact with food inox AISI 304 L
Gaskets PTFE
Ø Sieve [L] 390
N° sviwelling wheels 4



Electrical characteristics

Total installed power [KW] 0, 18
Supply voltage [VAC] 400
Number of phases 3
Frequency [Hz] 50 / 60
Enclosure degree of protection IP65
Connection type : industrial plug 16A – 5 poles





Process features

Hourly production [h] 50/60





Watch Video

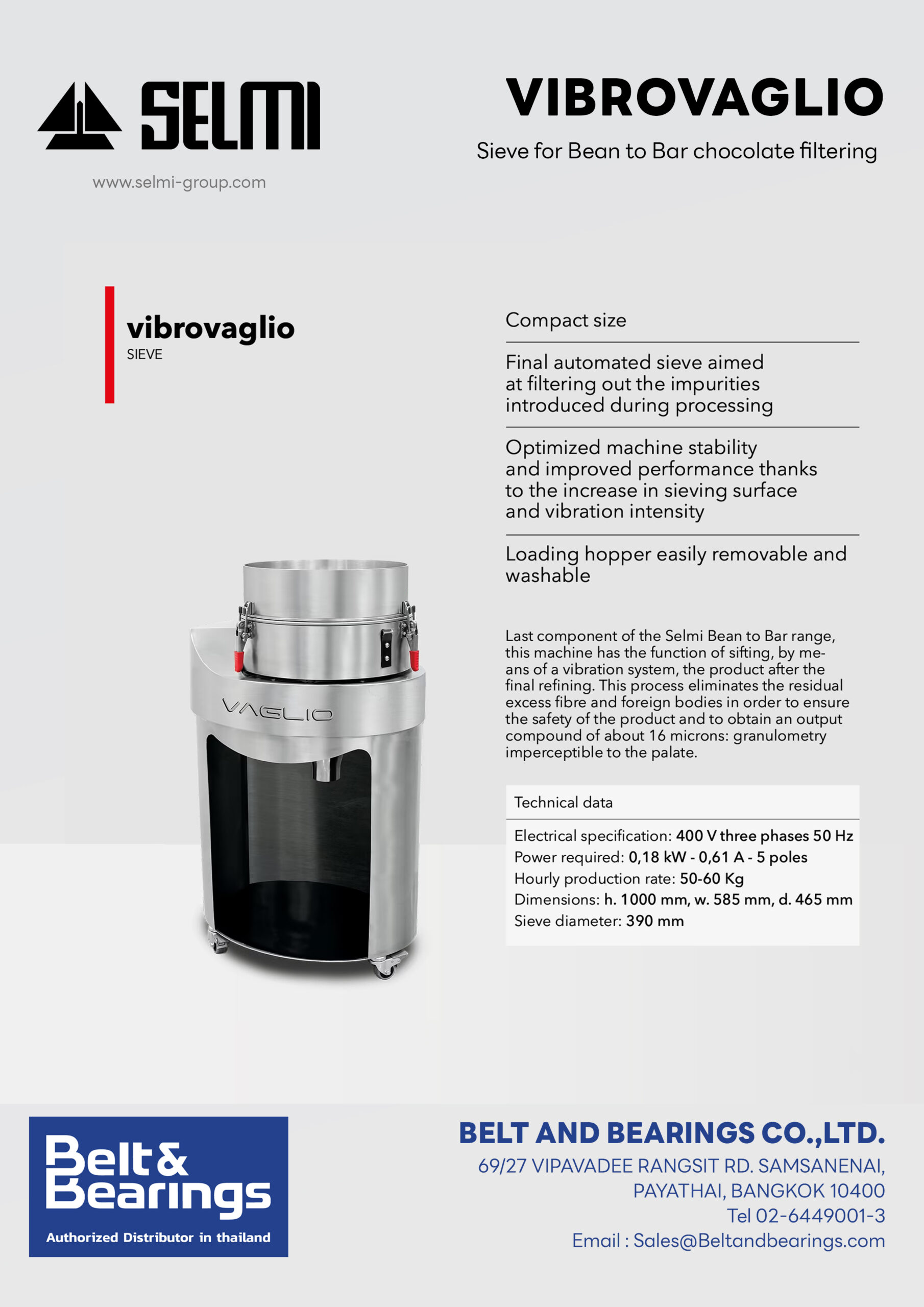

Download Catalog
